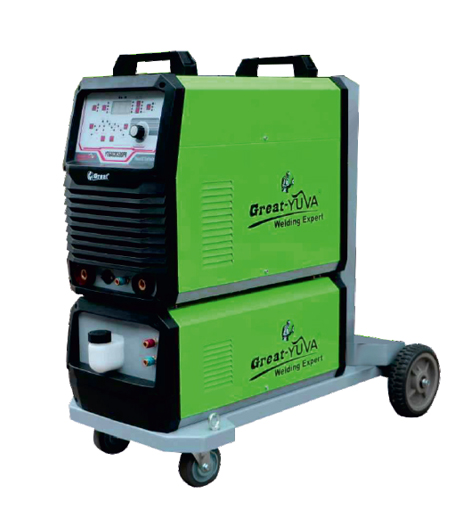

AC/DC Inverter TIG/MMA Welding Machine With Pulse - TIGACDC500PR
AC/DC Inverter TIG/MMA Welding Machine With Pulse - TIGACDC500PR
FULL DIGITAL CONTROLLED DOUBLE PULSE SYNERGIC 70% MIG/MAG/MMA WELDER
Features
- Variety of metals can be TIG welded : Aluminium, Stainless steel, Carbon steel, Alloy steel, Copper etc
- Suitable for MMA welding with all stick electrodes
- Advanced IGBT switching technology enables higher power efficiency and more stable arc
- Protection against over-voltage and over-current
- Aluminium oxide film clean capability resulting in high aesthetic weld bead
- Adjustable slope up/down, Gas pre-flow and post-flow for adequate shield gas protection before and after welding
- Advanced pulse functions facilitate better control over heat input enabling distortion control on thin metals
| Main Technical Parameters : | TIGACDC500PR |
|---|---|
| Control me+D39+D+D6:F20 | Dual IGBT Module Controlled Pulse AC/DC TIG Welder |
| Applicable welding method | AC/DC TIG, MMA |
| Rated input/No. of phases | 3-phase AC 415 V , +/- 15% |
| Input power frequency (Hz) | 50/60 |
| Rated input capacity (KVA) | 26 |
| Rated input current Amp | 40 |
| Output characteristics | CC(Constant current characteristics) |
| Maximum no-load voltage (Volt) | 95 |
| Rated output current (Amp) | >500 |
| Rated duty cycle (%) | 100 |
| Hot Start Current (Amp) | 50-500 |
| Arc Start Current (Amp) | 20-500 |
| Efficiency (%) | 85 |
| Power factor | 0.93 |
| Slope Up time (sec) | 0-10 |
| Slope Down time (sec) | 0-10 |
| Pre-flow time (sec) | 0-10 |
| Post-flow time (sec) | 0-60 |
| Pulse frequency (Hz) | 0.10-20 |
| Pulse frequency (Hz) | 0.10-20 |
| Peak Current (Amp) | 20-500 |
| Base Current (Amp) | 5-500 |
| Pulse duty cycle (Peak time %) | 10-90 |
| AC Frequency (Hz) | 20-200 |
| Clear Width (%) | 10-90 |
| Clear Depth (%) | -50 to +50 |
| AC Waveform Selection | Standard AC Waveform Sine Wave Waveform Triangular Waveform |
| No. of Memory Channels | 10 |
| Ingress Protection | IP23 |
| Insulation class | H |
| Dimension(LxWxH)(mm) | 775x550x810 |
| Weight (Kg) | 95 |
