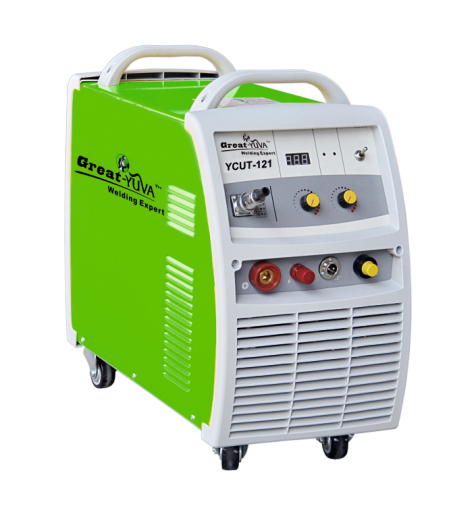

DC Inverter Air Plasma Cutting Machine - YCUT-121
DC Inverter Air Plasma Cutting Machine - YCUT-121
Features
PLASMA CUTTING
- Double IGBT High Power Module,High Frequency,Efficiency and Energy Saving.
- Suitable for Manual Cutting & Automatic Cutting
- CNC Compatible Machine.
- With good protection of Under-Voltage,Over-Voltage and Over-Current, it makes machine safe and reliable.
- Precise pre-setting of Voltage/Current data digitally enables easy operation
- With choice of 2T/4T mode, convenient operation.
- Power Indicator & Over-load Indicator.
- Equipped with Air valve.
Cutting Capablity
YCUT-101PR
* Note : The figures show the approximate cutting speed (m/min) at 100A.
| Main Technical Parameters : | YCUT-121 |
|---|---|
| Input Voltage(V) | 415 ± 10%,3-ph |
| Frequency(Hz) | 50/60 |
| Rated input current(A)@60% duty cycle | 27 |
| Rated Input capacity(KVA) | 18 |
| Rated Output current(A) | 120 |
| Input current(A)@100% duty cycle | 29 |
| Input capacity(KVA)@100% duty cycle | 20 |
| Output current(A)@100% duty cycle | 93 |
| No-load voltage(V) | 280 |
| Plasma gas | Compressed air |
| Air pressure required(MPa) | 0.3-0.6 |
| Case protect class | IP23 |
| Insulation class | H |
| Power factor | >0.93 |
| Efficiency(%) | 85 |
| Arc starting | Non-contact |
| Torch cooling mode | Air |
| Max Quality Cut Thickness(Mild Steel),mm | 32 |
| Sever Cut Thickness(Mild Steel),mm | 40 |
| Max piercing thickness(Mild Steel),mm | 19 |
| Max CNC Cutting thickness(Mild Steel),mm | 157 |
| Dimension(LWH),mm | 600x380x670 |
| Weight(Kg) | 31 |
