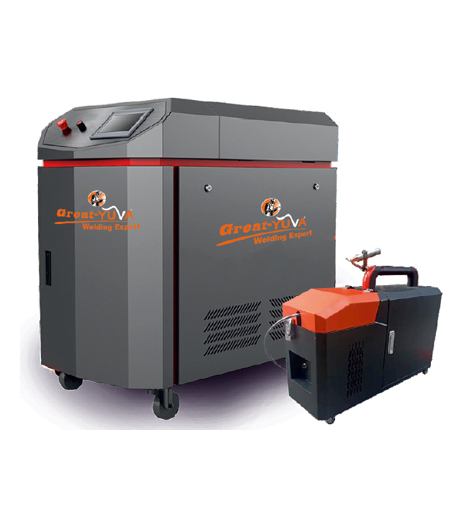

Fiber Laser Handheld Welding Machine - LW-3000PR
Fiber Laser Handheld Welding Machine - LW-3000PR
Features
- Self-developed super mini welding head, only 0.5kgs, light weight and user friendly
- Unique rotative protective mirror design, 6 times longer service time
- Wobble head with adjustable laser spot diameter (0-5mm)
- Easy laser focus adjustment
- Stepping motor auto wire feeder ,more stable and accuracy
- Auto wire feeding device controlled by machine software, ensure higher accuracy of feeding / withdraw wire
- Unique design for wire feeding fixture ,making ss / aluminum wire interchangeable more smoothly and conveniently
- Portable welding head support holder to avoid head damage
- Patented cabinet design as EU safety standards
Wire feeding technology
• Stainless Steel
• Carbon Steel
• Copper
• Galvanized Sheet
• Aluminium
• Alloy Metals
3 Functions:
Welding, Cutting, Cleaning
| Main Technical Parameters : | LW-2000PR |
|---|---|
| Input Voltage(V) | 220 VAC +/- 20% ,1-ph |
| Frequency(Hz) | 50/60 |
| Laser Power(Watt) | 3000 |
| Laser type | Fiber Laser |
| Control Software | Touch Screen |
| Laser Beam Dia(mm) | 0.2-3.0 mm |
| Wire-Feeder System | Double Wire feeding technology (Both or Single can be used at a time) |
| Protective Gas | Argon |
| Operating Mode | Continuous Wave/Modulation |
| Operating Power | Continuously adjustable |
| Positioning | Red light positioning |
| Output Power Fluctuation(%) | ±1.5 |
| Laser Wavelength(nm) | 1070 |
| Modulation Frequency(Hz) | 1-2000 |
| Maximum Power Consumption(KW) | 12 |
| Cooling Method | Water Chiller |
| Water Chiller | Dual-temperature Control |
| Fiber Torch Length(m) | 10m standard/15m(optional) |
| Welding speed(mm/sec) | 0-120 |
| Working Environment Temp(°C) | 15 to +40 |
| Storage Temp(°C) | -10 to +60 |
| Laser Beam Quality(M2) | 1.5 |
| Red Guide Laser Power(mW) | 0.5-1 |
| Welding Wire Dia applicable(mm) | 0.8/1.0/1.2/1.6 |
| Max. Wire Spool Weight applicable(Kg) | 25 |
| Working Environment Humidity Range(%) | <70 |
| Machine Dimension(mm) | 1020x900x1200 |
| Weight(Kg) | 330 |
