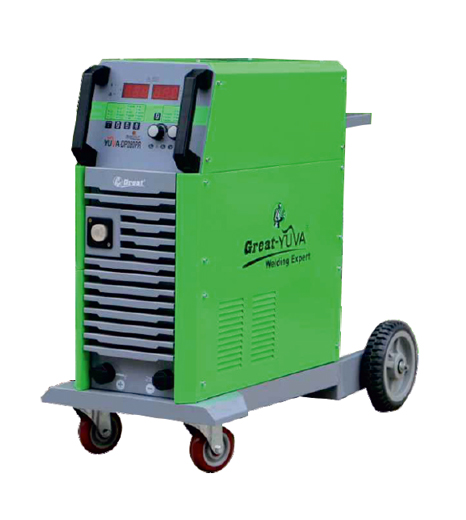

DC Inverter CC-CV MIG/MMA/LIFT TIG Welding Machine PR Series - YUVA-DP280PR
DC Inverter CC-CV MIG/MMA/LIFT TIG Welding Machine PR Series - YUVA-DP280PR
FULL DIGITAL CONTROLLED DOUBLE PULSE SYNERGIC 70% MIG/MAG/MMA WELDER
Features
- Simple and friendly man-machine interface
- Variety of material can be welded : Carbon Steel, Stainless Steel, Aluminium, Copper etc.
- With good protection of Under-Voltage,Over-Voltage and Over-Current, it makes the machine safe and reliable.
- Pre-setting of Current, Voltage, Wire Dia, Material type, Process, Pre-gas flow, Post-gas flow enables easy and precise operation.
- With CC/CV function, one machine can perform MIG/MMA/Lift TIG welding.
- With 2T/4T options, convenient for the operator to perform welding as per the job requirement.
- Soft Arc & Hard Arc feature - gives choice to choose arc type for thin sheet and thick plate
- Vertical Welding feature available
- Wire feeder with 4-roll drive system
| Main Technical Parameters : | YUVA-DP280PR |
|---|---|
| Input Voltage(V) | 3-PH AC415V+/- 15% |
| Frequency(Hz) | 50/60 |
| Rated input capacity(KVA) | 17.8 |
| Rated input current(A) | 15.6 |
| Rated duty cycle(%) | 60% |
| No-load output voltage(V) | 65 |
| Output current range(A) | 20-280 |
| Output voltage range(V) | 14-40 |
| Power factor | >0.93 |
| Gas flow (L/min) | 15-20 |
| Shell protection grade | IP23 |
| Insulation class | H |
| Dimension(L*W*H) (mm) | 910X420X790 |
| Weight(Kg) | 49 |
