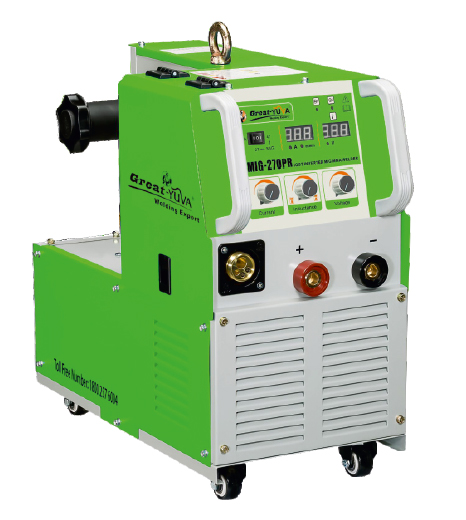

DC Inverter CC-CV MIG/MMA/LIFT TIG Welding Machine PR Series - YMIG-270PR
DC Inverter CC-CV MIG/MMA/LIFT TIG Welding Machine PR Series - YMIG-270PR
Features
- With good protection of Under-Voltage,Over-Voltage and Over-Current, it makes the machine safe and reliable.
- Pre-setting of precise digital Voltage/Current parameter enables easy operation.
- Double IGBT High Power Module makes the machine Highly Power efficient and Energy Saving.
- With CC/CV function ,one machine can perform MIG/MMA/Lift TIG welding.
- With 2T/4T options, convenient for the operator to perform welding as per the job requirement.
- Aluminium Welding feature and Gas-less/Gas-shielded FCAW feature (INMIG-300PR).
- Advance machine feature - Soft Arc & Hard Arc feature - gives choice to choose arc type for thin sheet and thick plate
About PR Series:
PR Series welding machines are heavy duty machines and thus suitable to be used in harsh industrial environments. This range of machines are designed for continuous applications and for outdoor applications.
| Main Technical Parameters : | YMIG-270PR |
|---|---|
| Input Voltage(V) | AC415V(3P)/230V+/- 10% |
| Frequency(Hz) | 50/60 |
| Rated input capacity(KVA)-MIG/MAG | 8.7 |
| Rated input capacity(KVA)-MMA | 9.8 |
| Rated input current(A)-MIG/MAG | 12/39 |
| Rated input current(A)-MMA | 13.6/44 |
| No-load voltage(V) | 60 |
| Max output current(A) | 270 |
| Output voltage range(V)-MIG/MAG | 17-27.5 |
| Output voltage range(V)-MMA | 21-30.08 |
| Duty cycle(%) | 60% |
| Output current range(A)-MIG/MAG | 60-270 |
| Output current range(A)-MMA | 15-270 |
| Insulation class | H |
| Power factor | >0.93 |
| Case protection class | IP23 |
| Dimension(L*W*H) (mm) | 507X260X532 |
| Weight(KG) | 25 |
| Suitable wire(mm) | 0.8/1.0 |
| Feeding speed(m/min) | 3-17 |
| Gas flow(L/min) | 5-10 |
