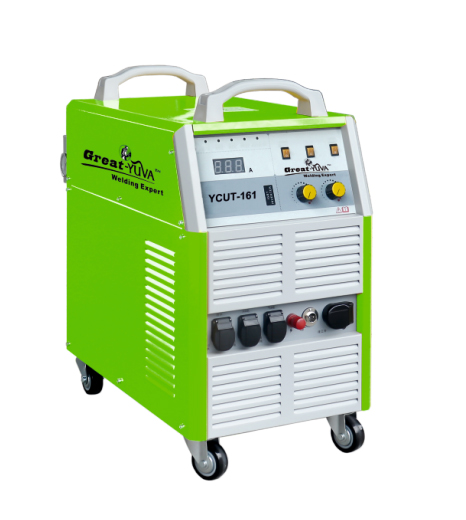

DC Inverter Air Plasma Cutting Machine - YCUT-161

Mechanized plasma cutting type design, it's specially suitable for CNC cutting use.
These Plasma Cutters can be both used as Hand-held Cutting and CNC Machine Cutting.
Easily cutting of all electrically conductive materials with finishing.
High strength structural steel cutting with low heat input.
High cutting speed(10 times more than oxyfuel).
Any processing of high quality blank for medium and thick sheet metals.
Wide range of material such as Mild Steel, Stainless Steel, and Aluminium.
Smooth edge, surface.
These machines have a low kerf(the width of the material removed by the cutting process)
Not affected by the reflective properties of a material with polished or highly reflective materials.

* Note : The figures show the approximate cutting speed (m/min) at 100A.

Main Technical Parameters :	YCUT-161
Input Voltage(V)	415 ± 10%,3-ph
Frequency(Hz)	50/60
Rated input current(A)@60% duty cycle	55
Rated Input capacity(KVA)	37
Rated Output current(A)	160
Input current(A)@100% duty cycle	43
Input capacity(KVA)@100% duty cycle	30
Output current(A)@100% duty cycle	124
No-load voltage(V)	320
Plasma gas	Compressed air
Air pressure required(MPa)	0.3-0.6
Case protect class	IP23
Insulation class	H
Power factor	>0.93
Efficiency(%)	85
Arc starting	Non-contact
Torch cooling mode	Water
Max Quality Cut Thickness(Mild Steel),mm	42
Sever Cut Thickness(Mild Steel),mm	50
Max piercing thickness(Mild Steel),mm	26
Max CNC Cutting thickness(Mild Steel),mm	21
Dimension(LWH),mm	720x370x666
Weight(Kg)	55
