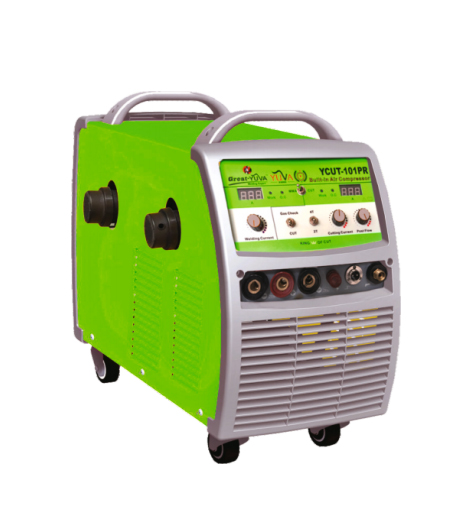

DC Inverter Air Plasma Cutting Machine - YCUT-101PR
DC Inverter Air Plasma Cutting Machine - YCUT-101PR WITH INBUILT AIR COMPRESSOR
Features
PLASMA CUTTING
- Separate Air Compressor not needed, thus easy portability of the machine and cost saving for customer.
- Inbuilt Compressor can be bypassed also and separate external compressor can be used in case of need.
- High capacity H bridge IGBT,25KHz wave pulse control, a leading technology in Industry
- With 4T working mode, machine can work without press switch all the time ,thus easy for operation.
- Precise pre-setting of parameter, thus very convenient for operator.
- High efficiency step-less double fan design,more reliable cooling system.
MMA WELDING
- Independent system for MMA welding ,no interference with PlasmaCut.
- IGBT single cycle current feedback,respond to each wave,thus more smooth for welding.
- No crystalline state main transformer, high efficiency and energy saving.
- Independent digital display for MMA welding ,thus more convenient for operator.
- High capacity change-over switch design,more suitable for outdoor work.
- Suitable for Rutile, Basic, Low Alloy, Stainless Steel welding electrodes.
Cutting Capablity
YCUT-101PR
* Note : The figures show the approximate cutting speed (m/min) at 100A.
| Main Technical Parameters : | YCUT-101 | |
|---|---|---|
| Input Voltage(V) | 415 ± 10%,3-ph | |
| Frequency(Hz) | 50/60 | Rated input current(A)@60% duty cycle | 23 | 20 |
| Rated Input capacity(KVA) | 15 | 12 |
| Rated Output current(A) | 100 | 320 |
| Input current(A)@100% duty cycle | 18 | 18 |
| Input current(A)@100% duty cycle | 18 | 15 |
| Input capacity(KVA)@100% duty cycle | 12 | 10 |
| Output current(A)@100% duty cycle | 77 | 248 |
| No-load voltage(V) | 400 | 68 |
| Plasma gas | Compressed air | - |
| Air pressure required(MPa) | 0.3-0.6 | - |
| Case protect class | IP23 | |
| Insulation class | >H | |
| Power factor | >>0.93 | |
| Efficiency(%) | >85 | |
| Case protect class | IP23 | |
| Insulation class | H | |
| Power factor | 0.93 | |
| Efficiency(%) | 85 | |
| Arc starting | Non-contact | Contact |
| Torch cooling mode | Air | - |
| Max Quality Cut Thickness(Mild Steel),mm | 25 | - |
| Sever Cut Thickness(Mild Steel),mm | 30 | - |
| Max piercing thickness(Mild Steel),mm | 15 | - |
| Max CNC Cutting thickness(Mild Steel),mm | 13 | - |
| Suitable MMA electrode dia(mm) | - | 2.5/3.15/4.0 |
| Dimension(LWH),mm | 625x302x585 | |
| Weight(Kg) | 49 | |
