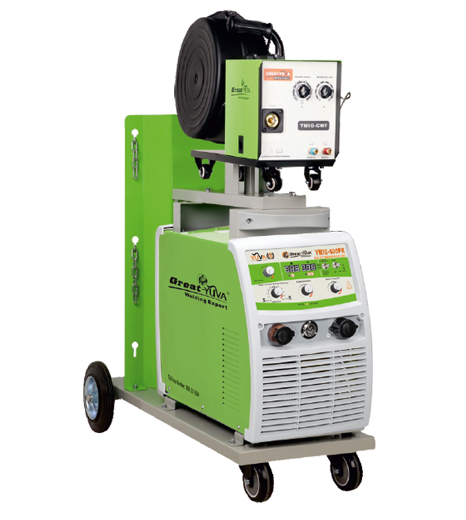

DC Inverter CC-CV MIG/MMA/LIFT TIG Welding Machine PR Series - YMIG-600PR
Without-WATERCOOLING
DC Inverter CC-CV MIG/MMA/LIFT TIG Welding Machine PR Series - YMIG-600PR
Features
- With good protection of Under-Voltage,Over-Voltage and Over-Current, it makes the machine safe and reliable.
- Pre-setting of precise digital Voltage/Current parameter enables easy operation.
- With CC/CV function ,one machine can perform MIG/MMA/Lift TIG welding.
- With 2T/4T options, convenient for the operator to perform welding as per the job requirement.
- Advance machine feature - Soft Arc & Hard Arc feature - gives choice to choose arc type for thin sheet and thick plate.
| Main Technical Parameters : | YMIG-600PR |
|---|---|
| Input Voltage(V) | AC415V+/- 10% |
| Frequency(Hz) | 50/60 |
| Rated input capacity(KVA)-MIG/MAG | 24 |
| Rated input capacity(KVA)-MMA | 26 |
| Rated input current(A)-MIG/MAG | 33.3 |
| Rated input current(A)-MMA | 36 |
| No-load voltage(V) | 70 |
| Max output current(A) | 600 |
| Output voltage range(V)-MIG/MAG | 16-39 |
| Output voltage range(V)-MMA | 22.4-40 |
| Duty cycle(%) | 60% |
| Output current range(A)-MIG/MAG | 60-600 |
| Output current range(A)-MMA | 60-600 |
| Insulation class | H |
| Power factor | >0.93 |
| Case protection class | IP23 |
| Dimension(L*W*H) (mm) | 930X510X1190 |
| Weight(KG) | 66 |
| Suitable wire(mm) | 1.0/1.2/1.6 |
| Feeding speed(m/min) | 3-24 |
| Gas flow(L/min) | 8-25 |
