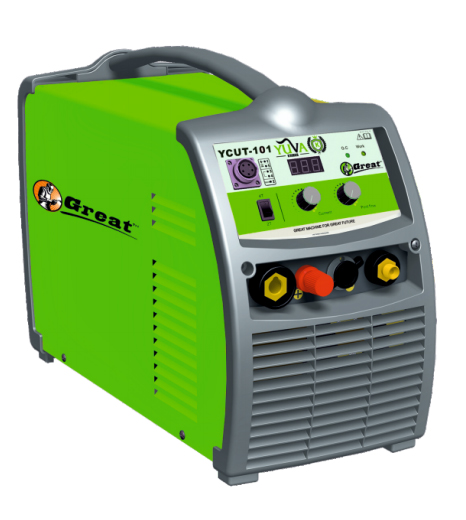

DC Inverter Air Plasma Cutting Machine - YCUT-101
DC Inverter Air Plasma Cutting Machine - YCUT-101
- Double IGBT High Power Module,High Frequency,Efficiency and Energy Saving
- Suitable for Manual Cutting & Automatic Cutting.
- CNC Compatible Machine.
- With good protection of Under-Voltage,Over-Voltage and Over-Current, it makes machine safe and reliable.
- Precise pre-setting of Voltage/Current data digitally enables easy operation.
- With choice of 2T/4T mode, convenient operation.
- Power Indicator & Over-load Indicator.
- Equipped with Air valve.
Cutting Capablity
YCUT-101
* Note : The figures show the approximate cutting speed (m/min) at 100A.
| Main Technical Parameters : | YCUT-101 |
|---|---|
| Input Voltage(V) | 415 ± 10%,3-ph |
| Frequency(Hz) | 50/60 |
| Rated input current(A)@60% duty cycle | 23 |
| Rated Input capacity(KVA) | 15 |
| Rated Output current(A) | 100 |
| Input current(A)@100% duty cycle | 18 |
| Input capacity(KVA)@100% duty cycle | 12 |
| Output current(A)@100% duty cycle | 77 |
| No-load voltage(V) | 400 |
| Plasma gas | Compressed air |
| Air pressure required(MPa) | 0.3-0.6 |
| Case protect class | IP23 |
| Insulation class | H |
| Power factor | >0.93 |
| Efficiency(%) | >85 |
| Arc starting | >Non-contact |
| Torch cooling mode | >Air |
| Max Quality Cut Thickness(Mild Steel),mm | >25 |
| Sever Cut Thickness(Mild Steel),mm | >30 |
| Max piercing thickness(Mild Steel),mm | >15 |
| Dimension(LWH),mm | >460x220x365 |
| Weight(Kg) | >18.5 |
